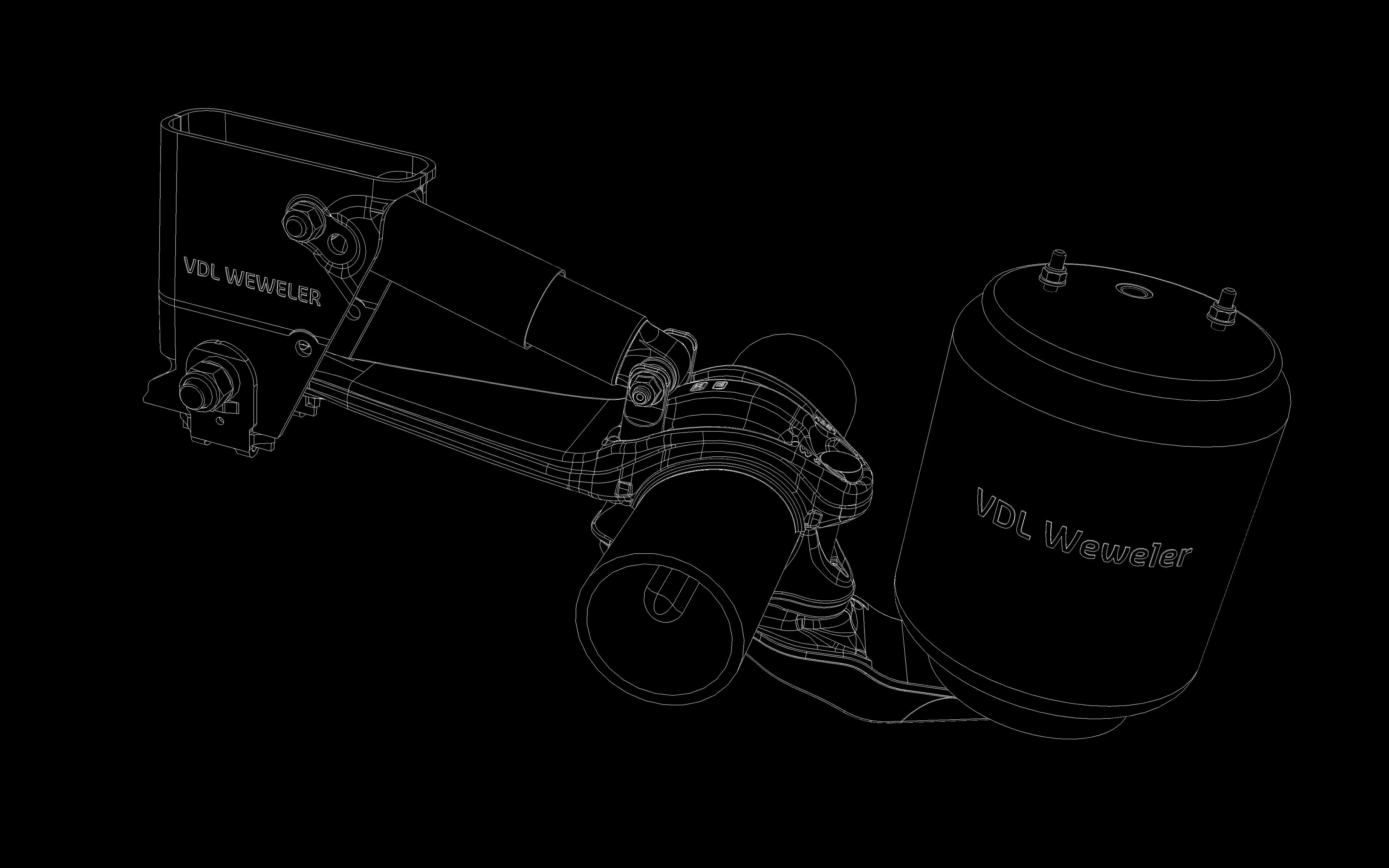

With numerous patented innovations, the MBS®-GF is a revolutionary light weight air suspension system, suitable for 9t. thin wall Ø146mm grooved axles.

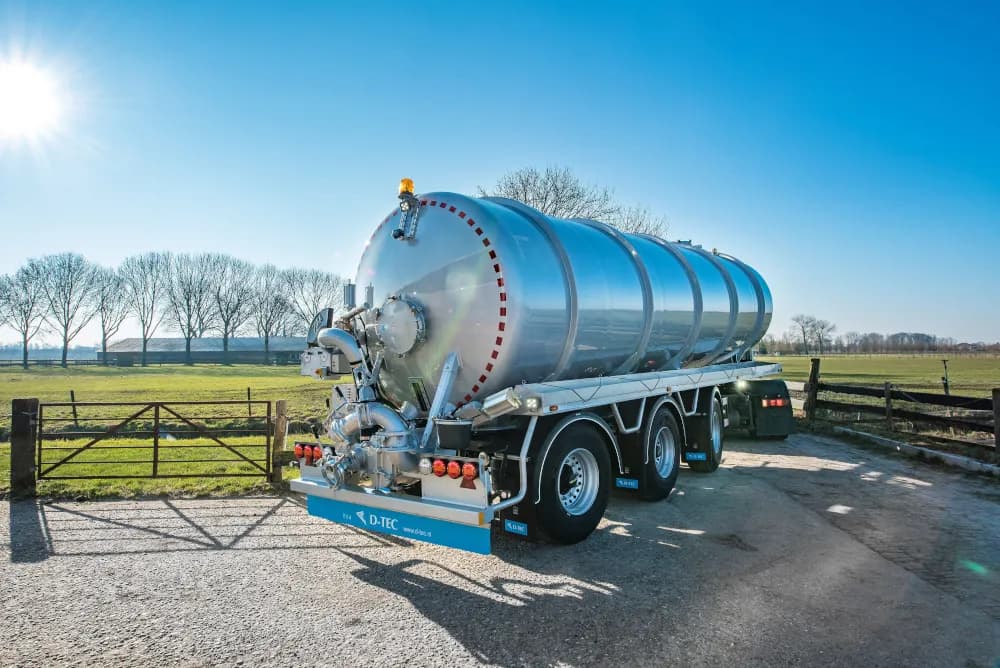

Sold in Europe through Valx, this multi-purpose air suspension can be used on a wide range of standard trailers operating on highway conditions.
The air suspension is clamped around the axle using three bolts and is held in position by an ingenious groove in the axle beam, offering unique modularity in spring track.
A first in trailing arm suspension design, the unique forged flexible trailing arm eliminates the need for U-bolts and U-bolt plates. The tapered trailing arm with its wider clamping area and small diameter maintenance-free bushing provides unequalled roll stiffness while putting less stress on the axle, therefore maximizing the service life.
By releasing a single bolt, both tail ends can be given offsets of 0, 25, 50, 65, and 90mm in either direction, eliminating the need for a left and right version.
The HTLT shock absorbers are equipped with high/low temperature Viton® seals and designed to be the stroke limiter.
