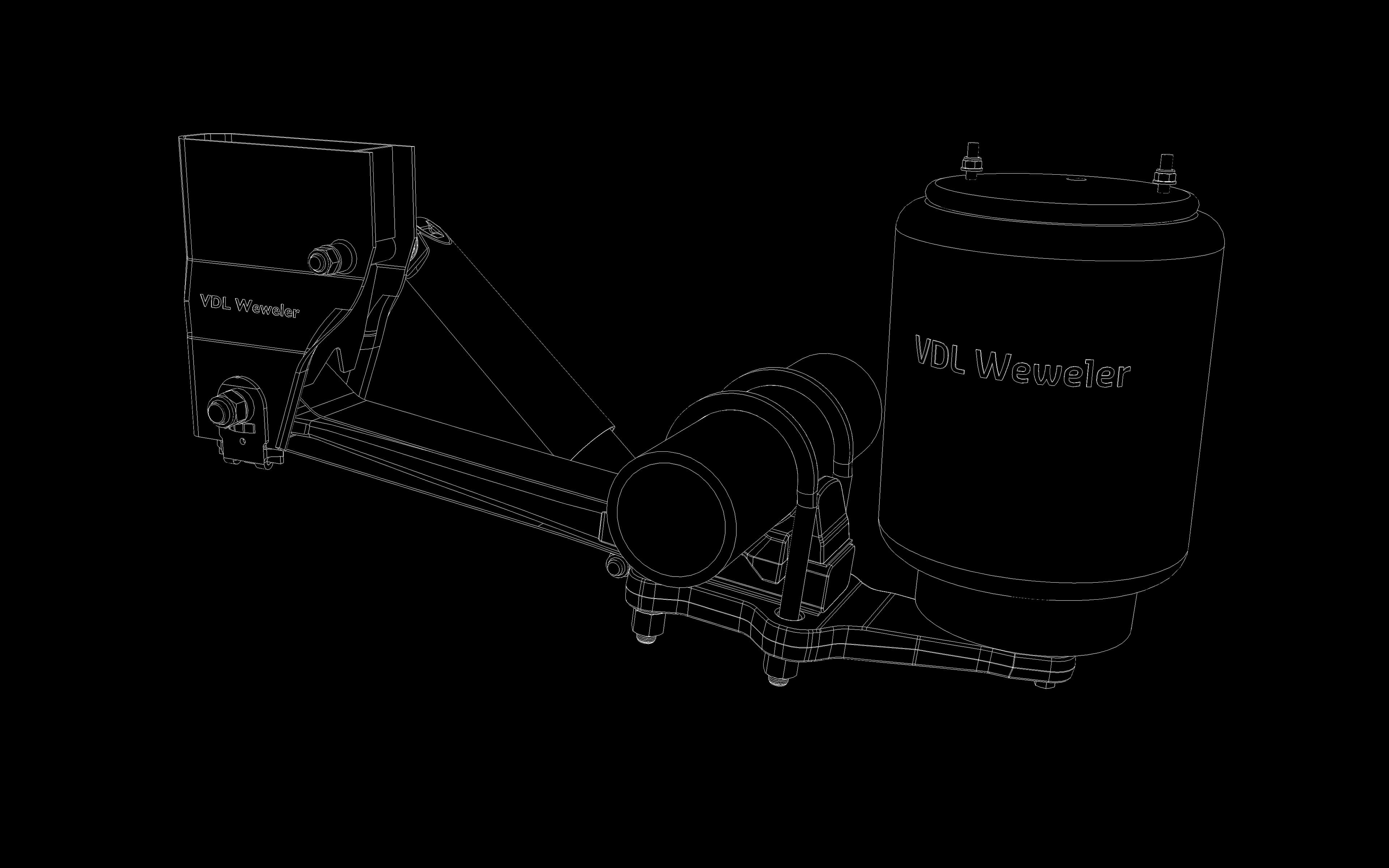

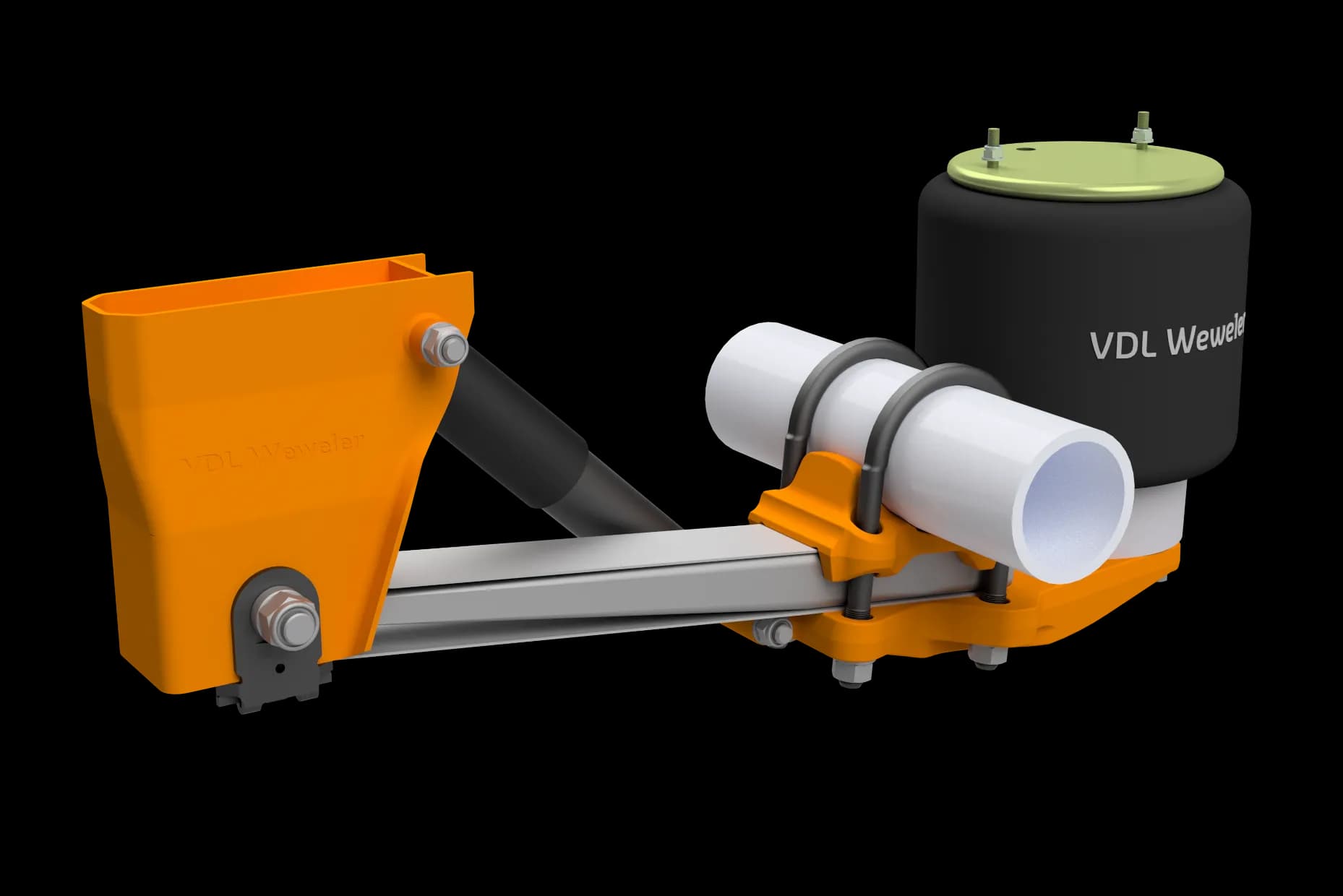

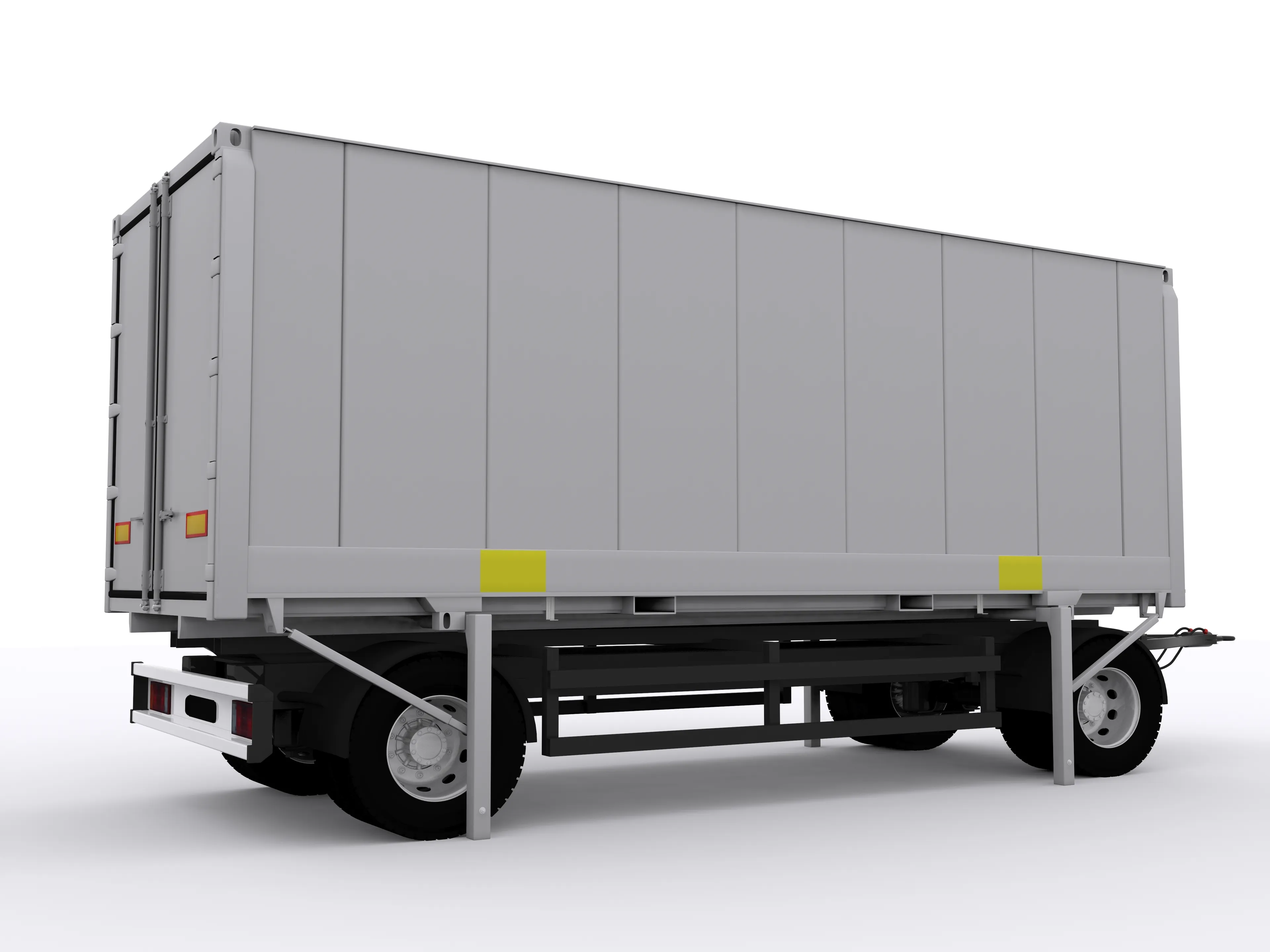

The MBS-MAXI system is a 9t. single leaf air suspension specifically designed for swap-body applications.
With the Maxi it is possible to use a more common, cost-effective long-stroke air spring whilst still maintaining a total stroke of 440mm.
The solution is equipped with flexible high strength spring steel trailing arms incl. safety clip and can be fitted to Ø146mm drum or disc brake trailer axle.
The closed reinforced hanger brackets can be fitted with a patented casted bracing option, that ensures forces going straight into the chassis.
The shock absorbers are equipped with high temperature Viton® seals.
Furthermore the range offers easy alignment with re-alignment free bushing and low & easy maintenance.
