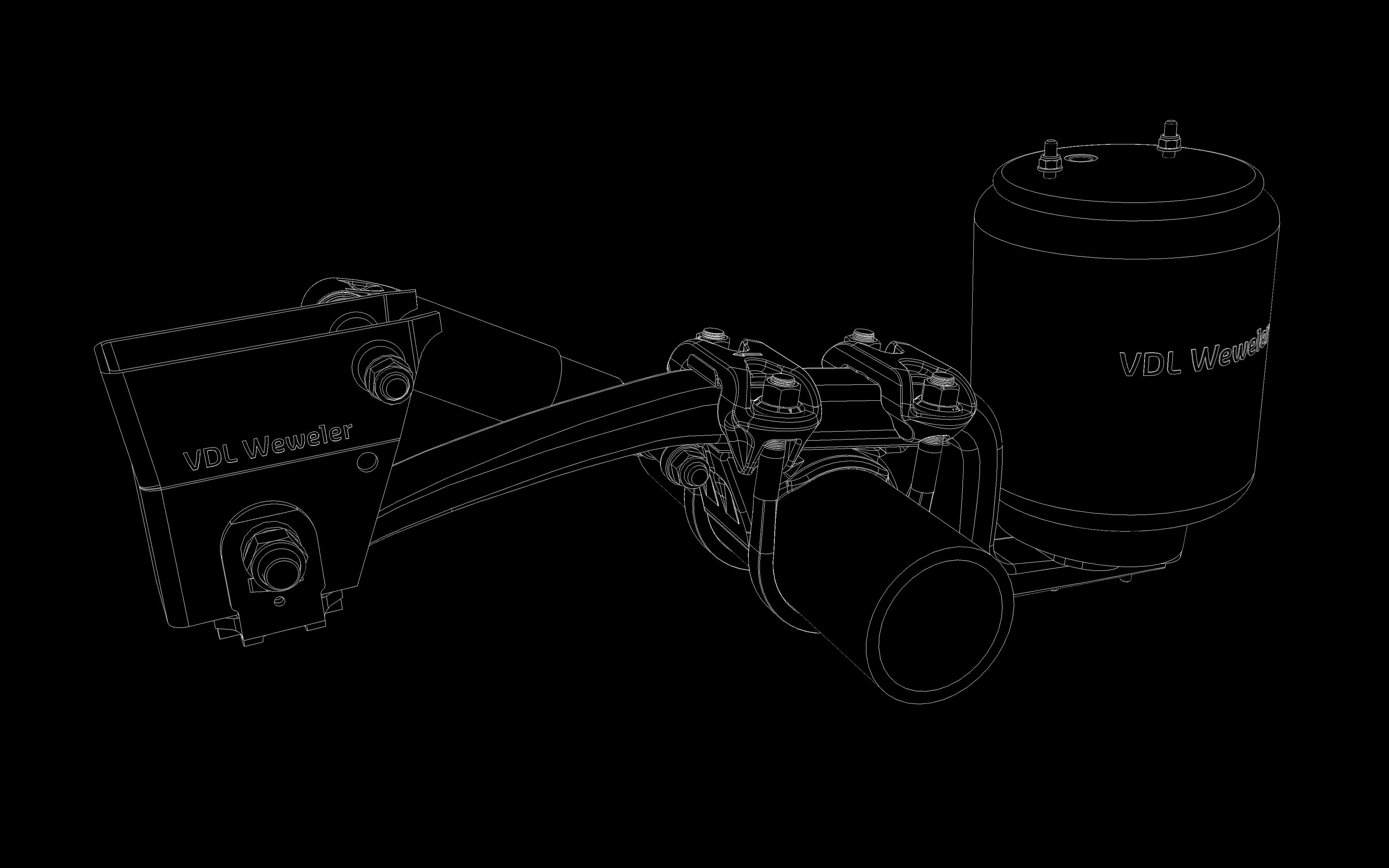

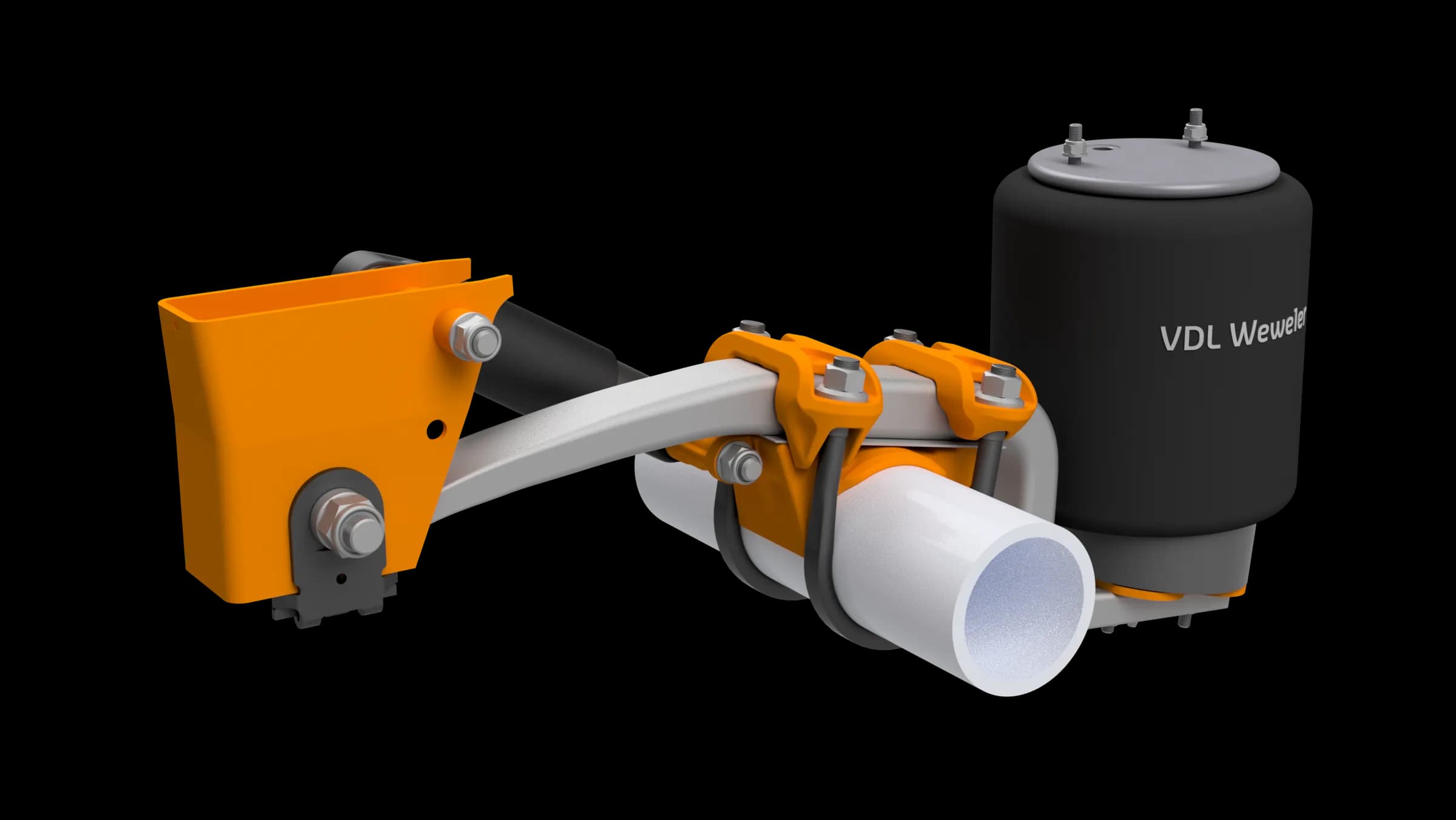

MBS-W

MBS®-W75 is a compact designed lightweight standard range suitable for 9t. Ø127mm or thin wall Ø146mm axles and suitable for a wide range of trailers operating on highway conditions.
The MBS®-W95 is a variation on the W75 range suitable for the more demanding conditions and can be used on a wide range of trailers operating on/off highway.
Both ranges make use of an axle seat that only requires welding on one side. The []120 clamping is bolted.
The axle seats are interchangeable between both ranges.
Both ranges are also available for 9t. Ø146mm groove axles in combination with the clamped Ø146 axle seat.
Full ride height range can be achieved by using various hanger brackets and pedestals.
Weight optimization is achieved by 2D rolling of the flexible high strength spring steel trailing arms.
The tapered design of the new hanger brackets offers great compatibility and allows for a more optimum frame width. The hanger brackets can be fitted with a patented casted bracing option, that ensures forces going straight into the chassis. This bracing is mandatory on the MBS®-W95 range.
The shock absorbers are equipped with high temperature Viton® seals and designed to be the stroke limiter of the suspension system.
Furthermore the range offers easy alignment with re-alignment free bushing, fully interchangeable air springs and low & easy maintenance.

Specifications

Maximum axle load: 9t
Single leaf trailing arm: 75x54mm / 95x49mm
Trailing arm dimensions: L1 = 520mm / L2 = 330mm & 380mm
Available axle clampings: Ø146mm (welded & clamped), Ø127mm (welded), vierkand 120mm (clamped)
Ride height range: 280-505mm
Air spring options: Ø300mm & Ø335mm
System weight: ≥ 135kg
Optional: Bolt-On® axle lift
Optional: Bolt-On® Splitter®
