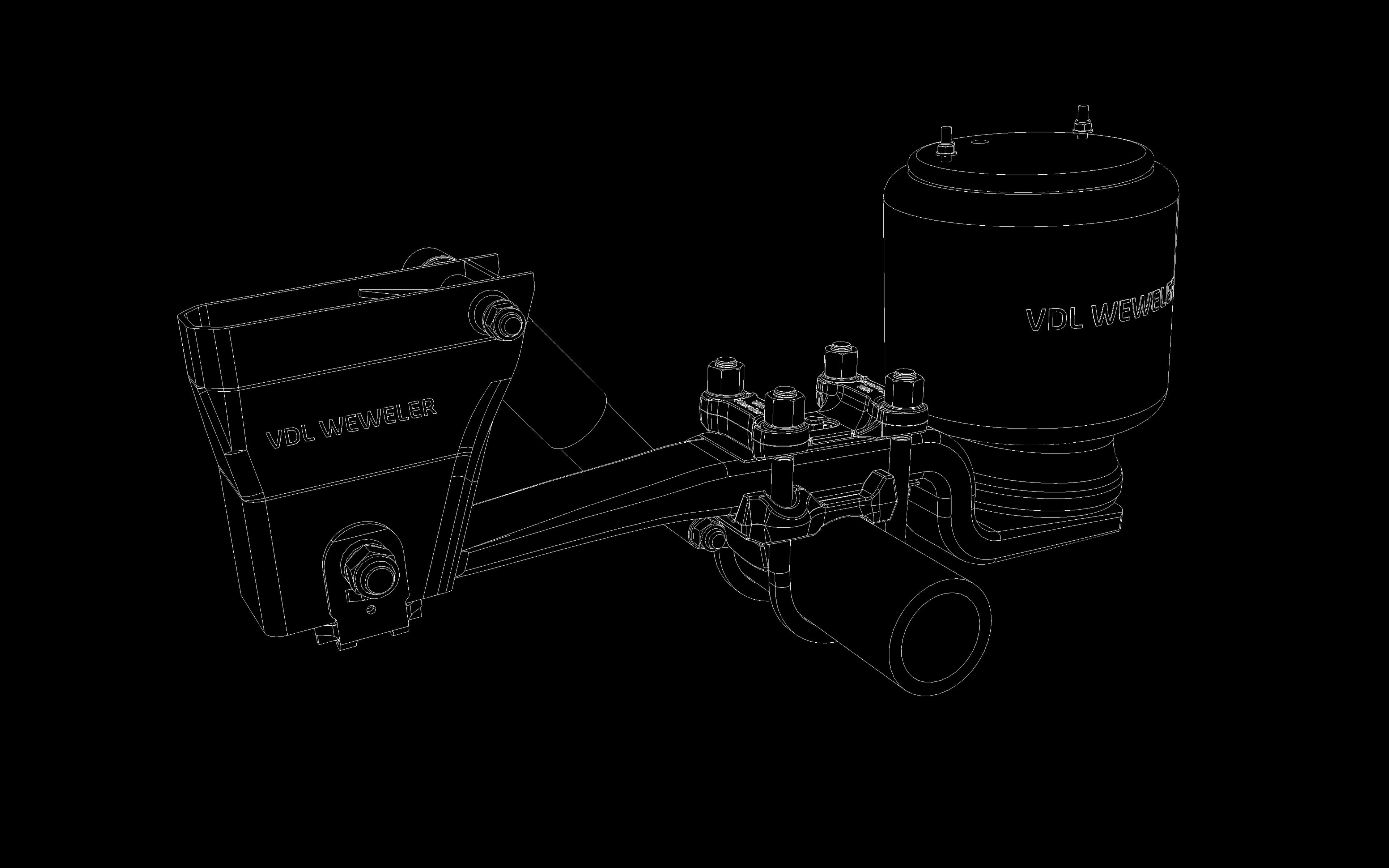

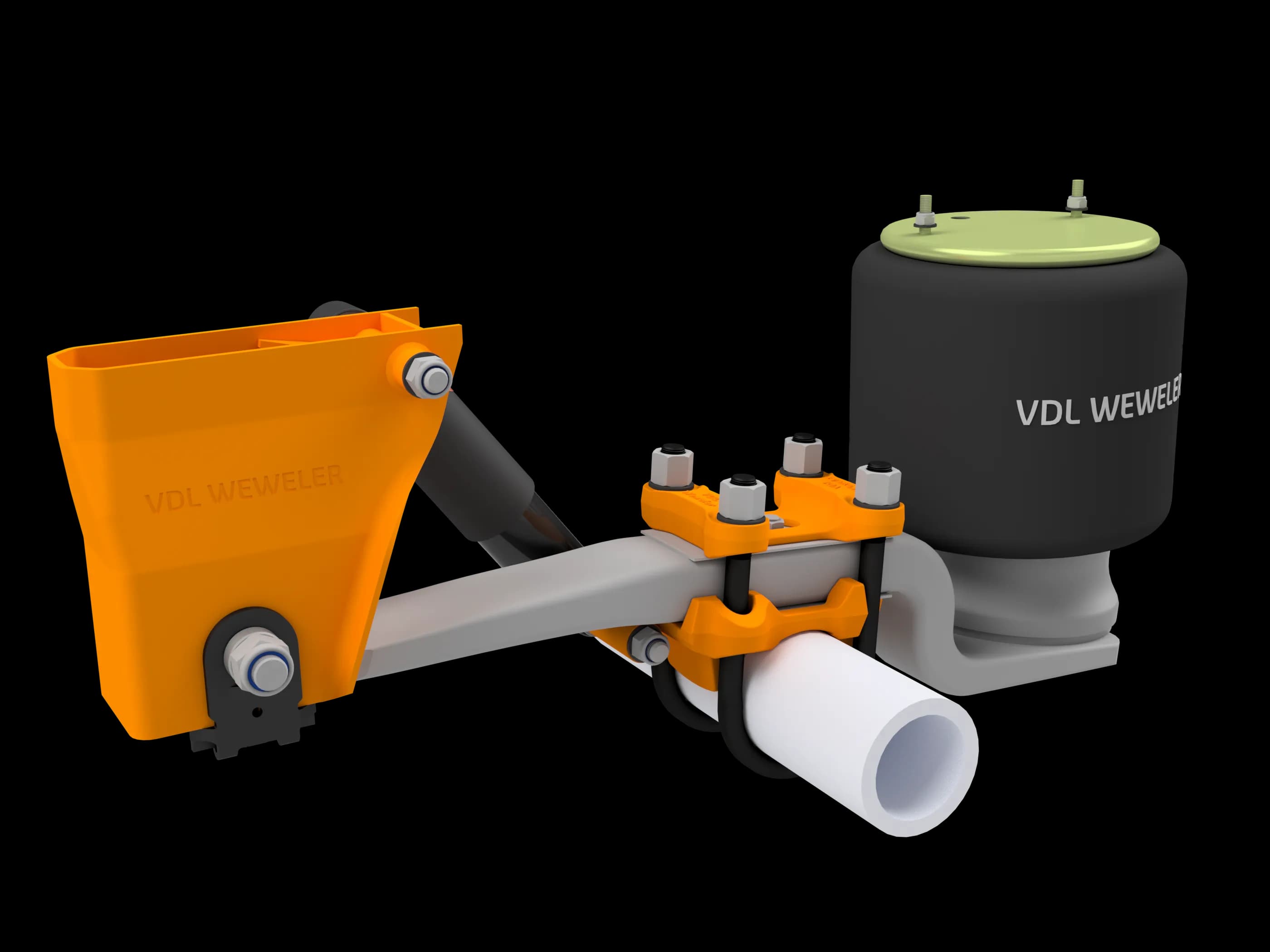

The HD 9t. - 13t. is a well proven, robust single and twin leaf air suspension range, that can best be described as an all-round solution for many trailer types and suitable for most on and off road conditions worldwide.
This air suspension range is equipped with 2D rolled flexible high strength spring steel trailing arms and can be fitted to all standard trailer axle sizes (Ø127mm, Ø146mm, []120mm and []150mm).
The modularity of the complete range ensures the different components are reduced to a minimum and many components are fully interchangeable throughout the whole range.
The closed reinforced hanger brackets can be fitted with a patented casted bracing option, that ensures forces going straight into the chassis.
The HTLT shock absorbers are equipped with high/low temperature Viton® seals and designed to be the stroke limiter of the suspension system.
Furthermore the range offers easy alignment with re-alignment free bushing, a higher overload threshold and low & easy maintenance.
Specifications
Suitable for axle loads: 9t. - 13t.
Single leaf trailing arms: 100x48mm / 100x54mm / 100x59mm
