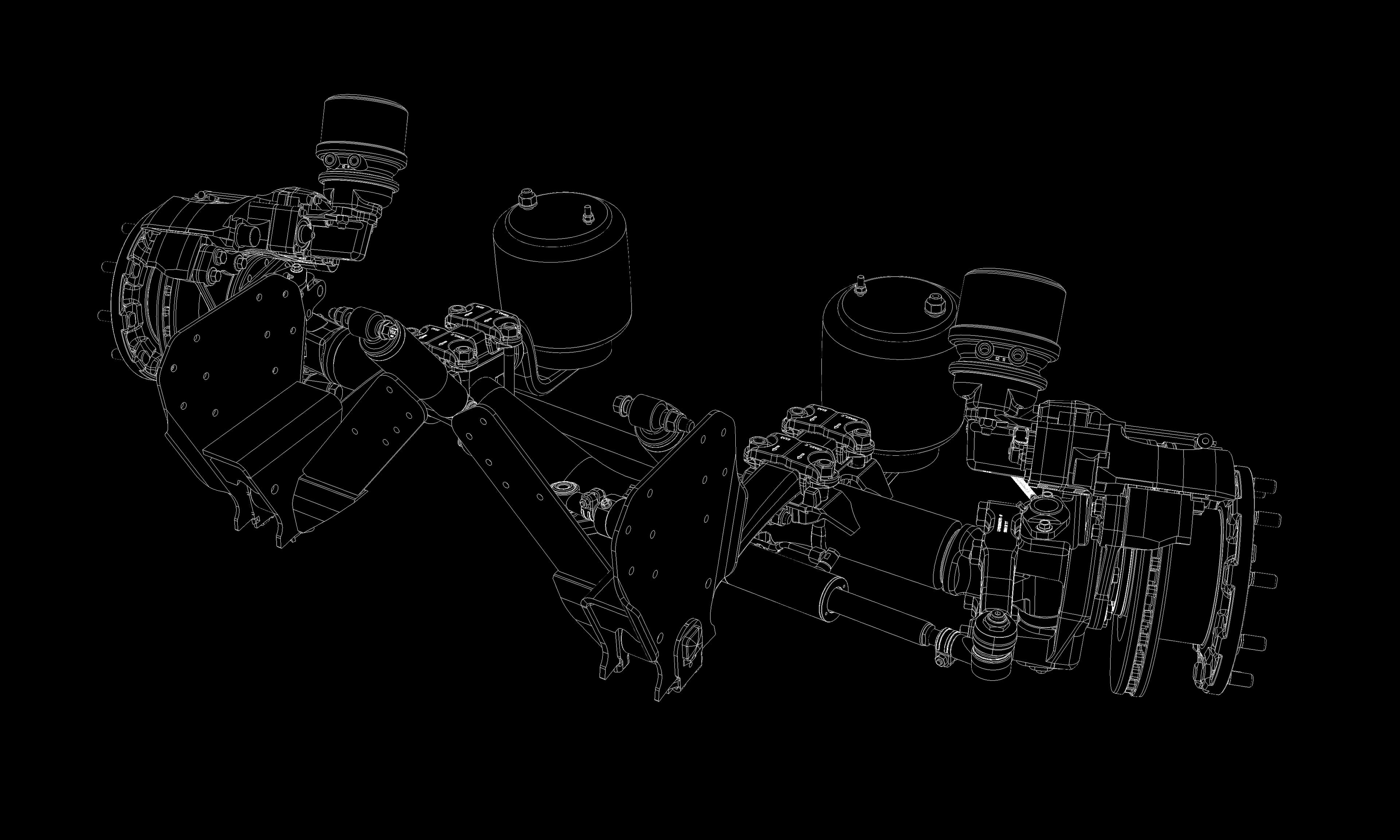

SKS Range

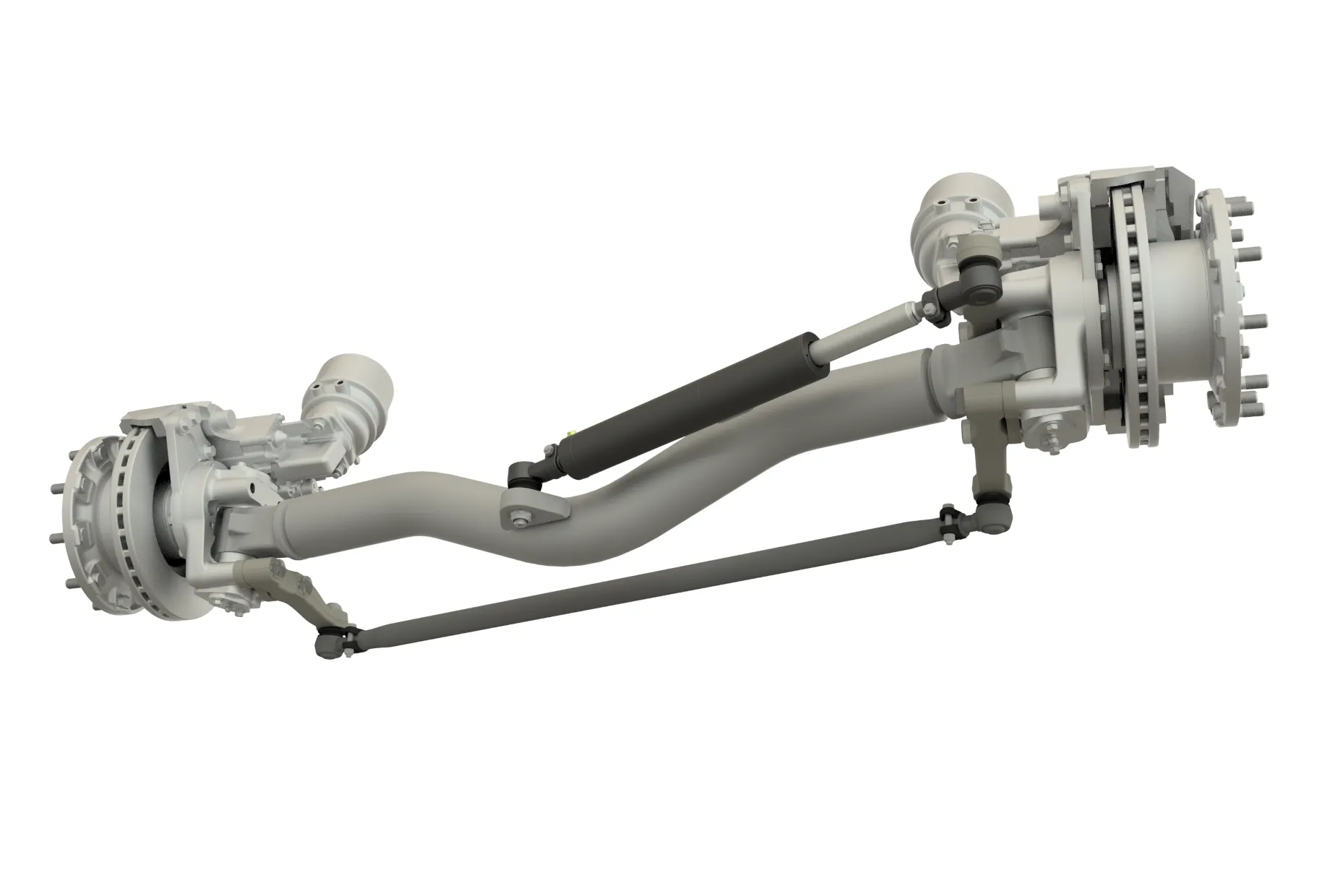

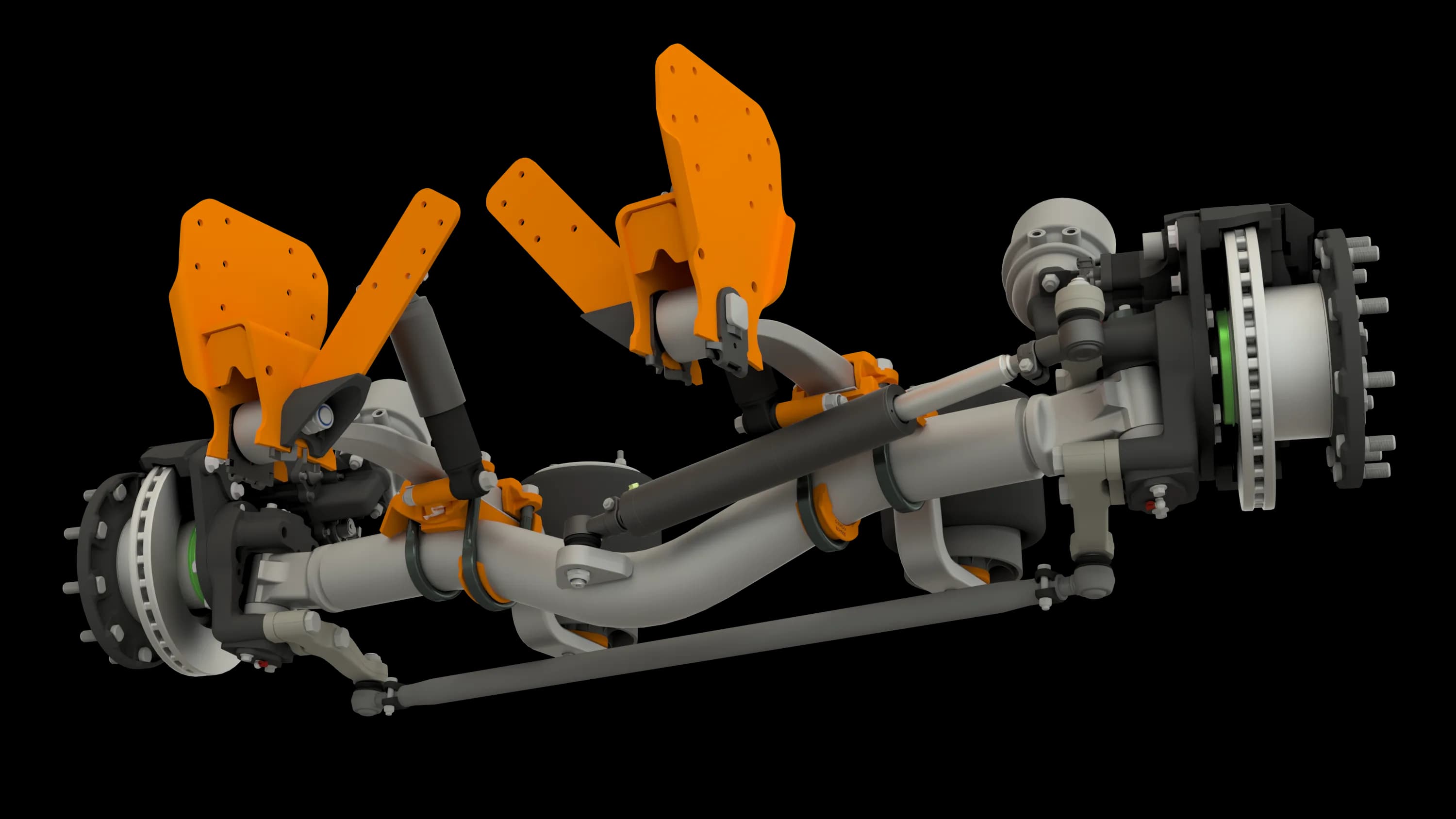

The SKS axle is used as a mid-steer pusher located in front of the driven axle.
The design can also be applied as a tag axle when the engine is located at the rear of a chassis.
Both wide and narrow track options are available as a complete solution.

Shown example

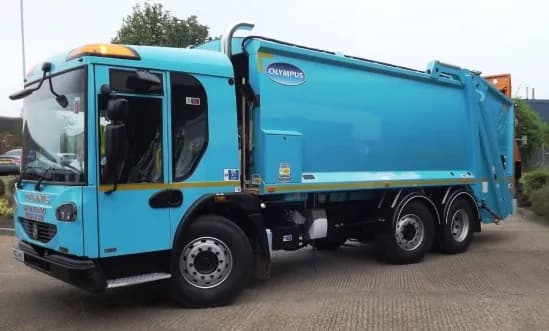

Dennis Eagle Mid Steer
- Wide and narrow track installations.
- ETS steering, no mechanical linkages.
- Modular design (most components are identical to the Dennis Eagle tag axle solution)

Specification VDL Weweler Wheelends:
- 22.5” disc brakes.
- Design capacity 10T.
- Choice of angle positioning of brake caliper (bolt on torque plate).
- Knorr Bremse Synact series brake caliper with Evo brake boosters (alternative radial position).
- Bolt on steering arms.
