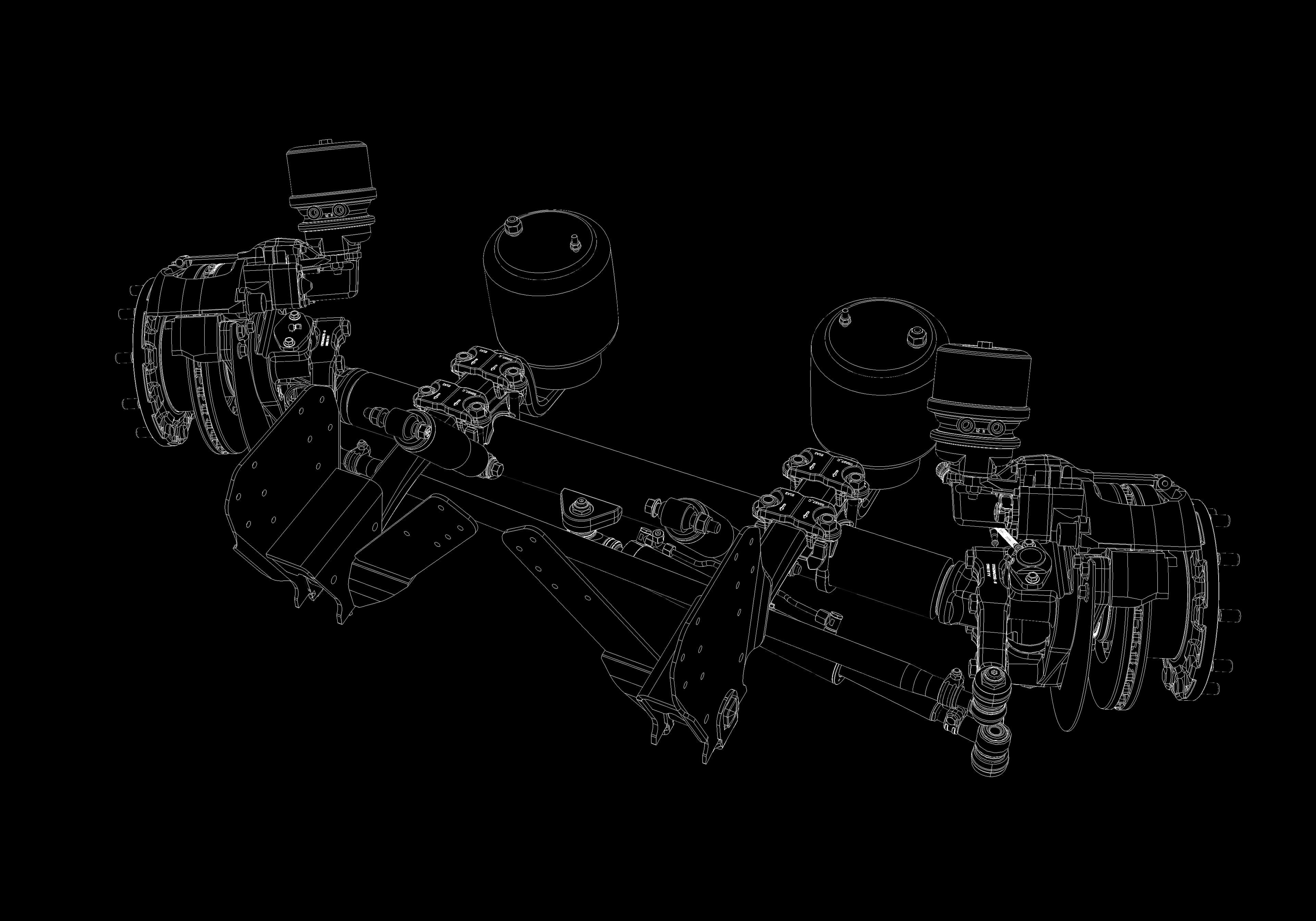

SRS Range

As the swivel of the VDL Weweler wheelends benefit from an offset of 69mm in relation to the axle beam centre line, a straight axle beam can be used in case of tag axle applications.

Shown example:

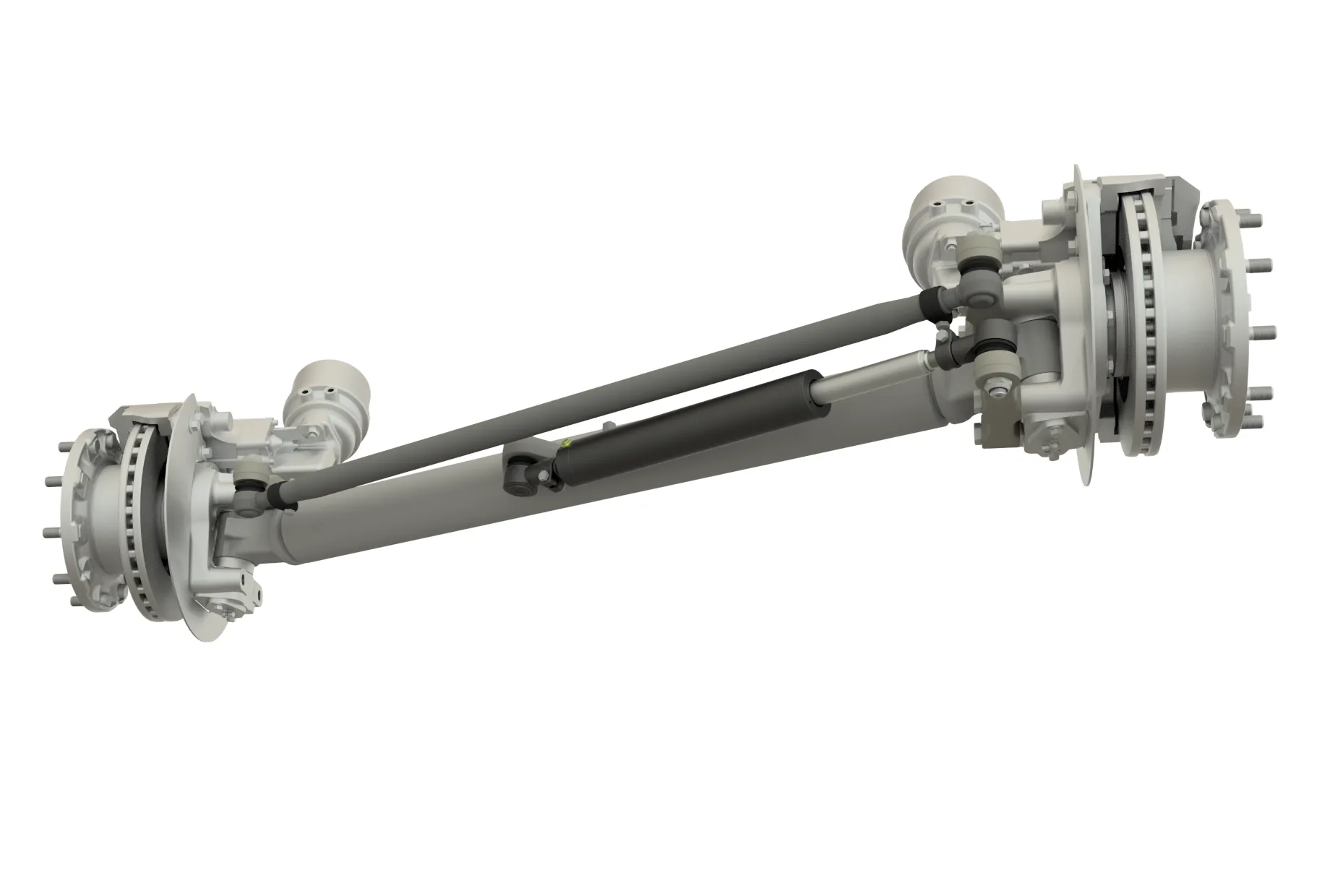

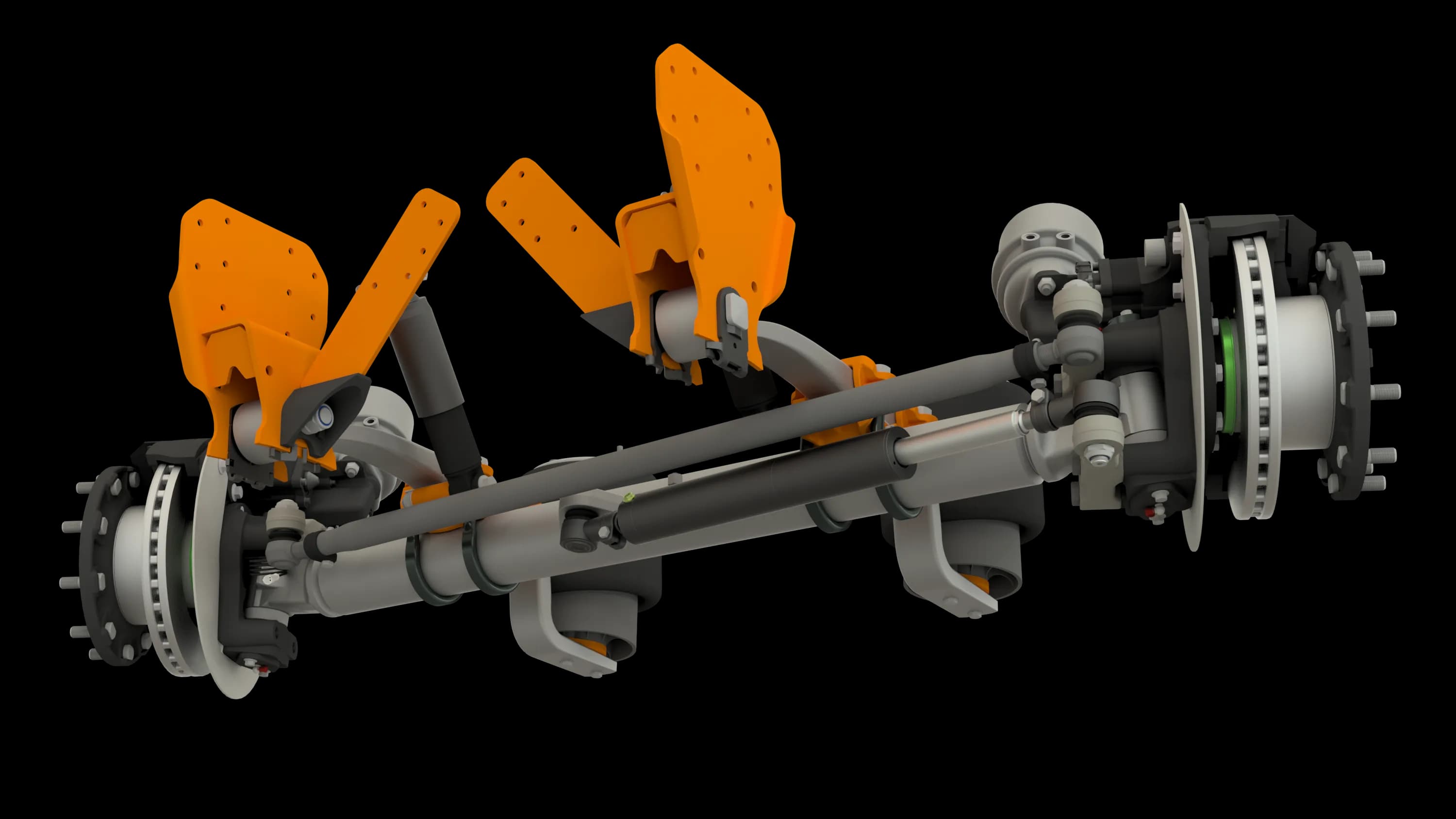

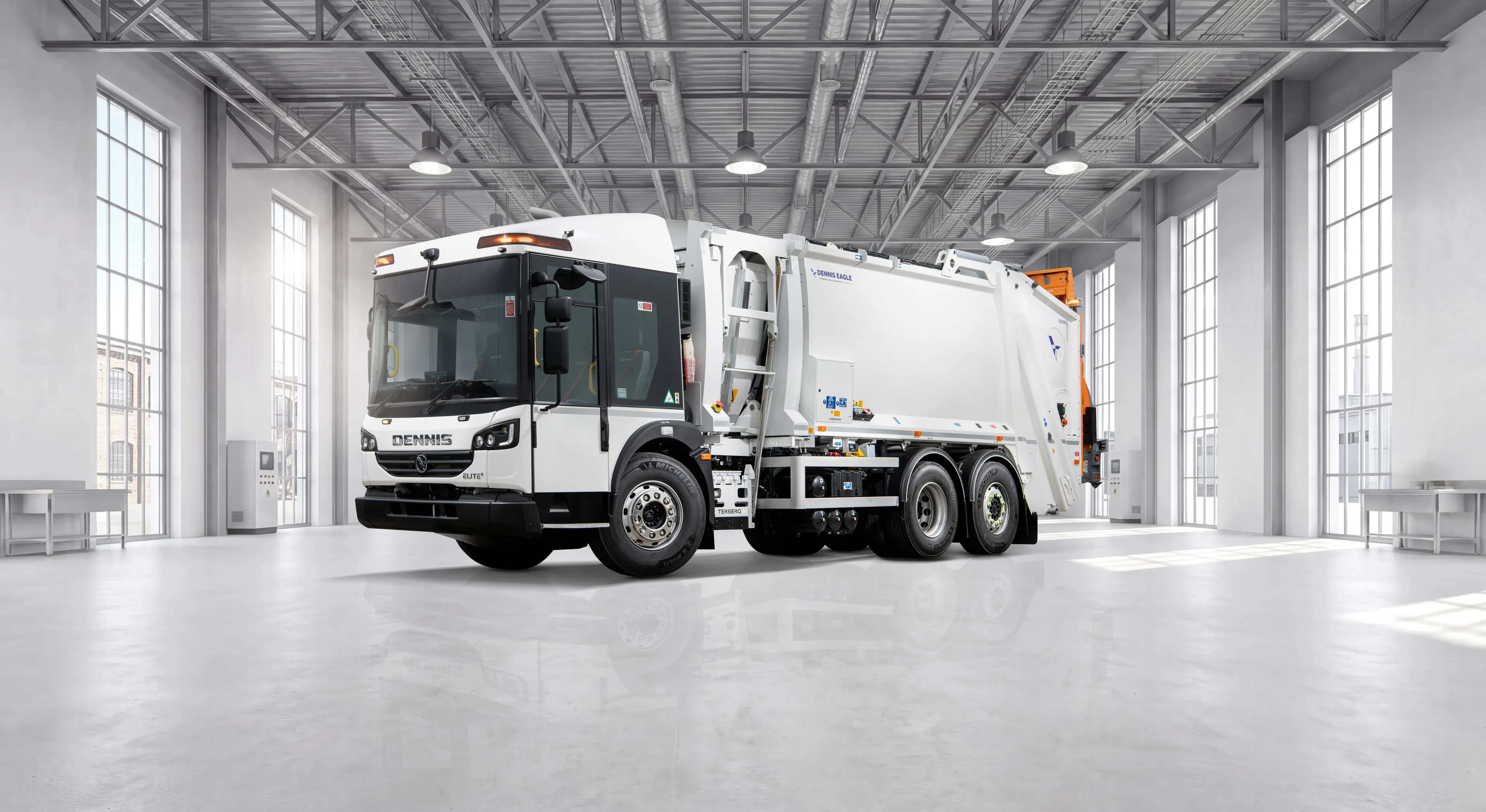

Dennis Eagle 8T Tag steer axle installation.
- Wide and narrow track installations.
- ETS steering, no mechanical linkages.
- Modular design (components have synergy with the Dennis Eagle tag axle installation).

Specification VDL Weweler Wheel ends:
- 22.5” disc brakes.
- Design capacity 10T.
- Choice of angle positioning of brake calliper (bolt on torque plate).
- Knorr Bremse Synact series brakes with Evo brake boosters (optional radial position).
- Bolt on adaptable steering arm.
